VTC-5.5 Crimping Tool

For crimping terminals in JIS 1.25, 2, 3.5, 5.5 mm² / DIN 1.5, 2.5, 4, 6 mm² / AWG 16-12, 10.

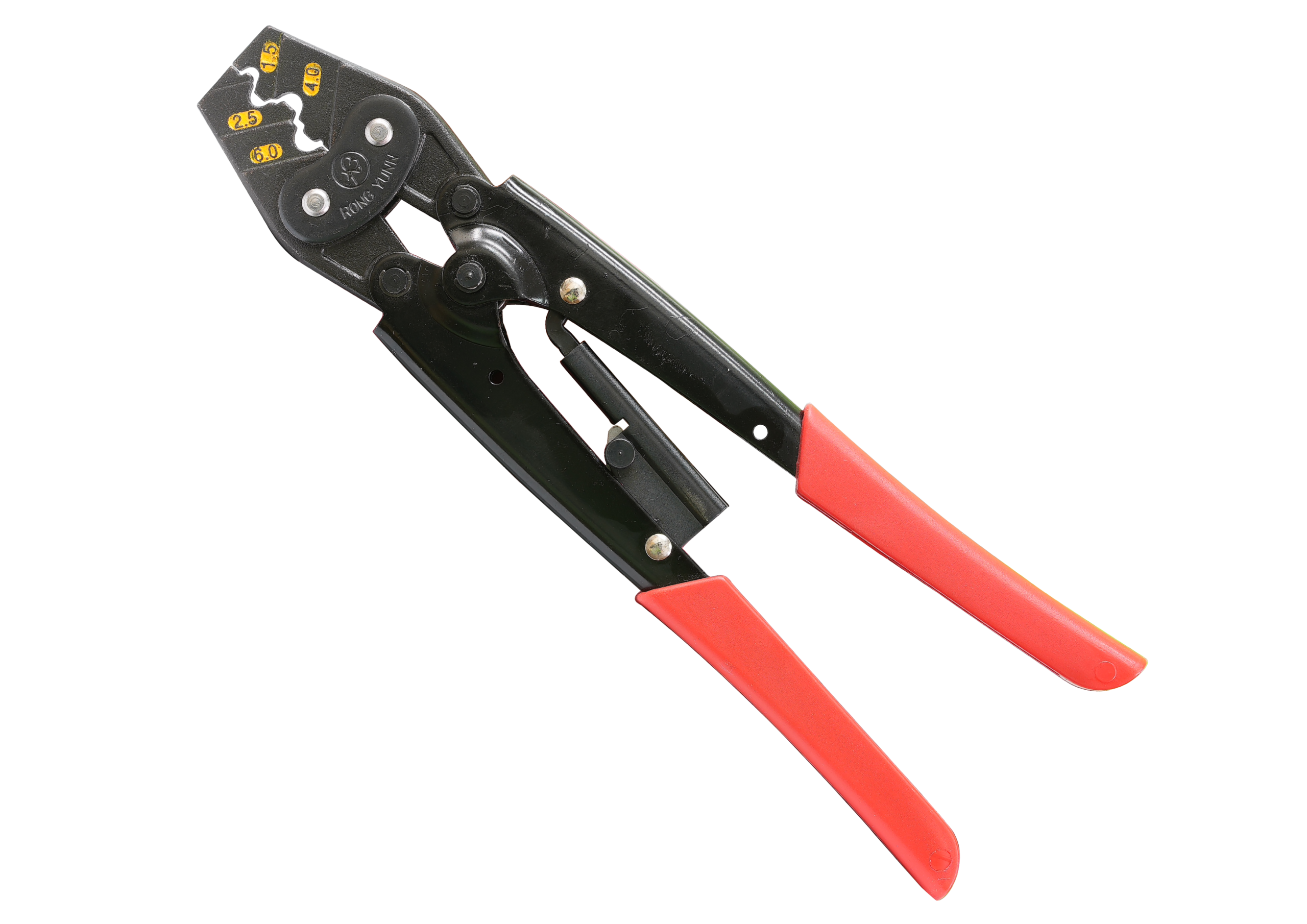

VTC-5.5 crimping tool for electrical terminals up to 5.5 mm²
The VTC-5.5 Crimping Tool is designed for medium terminal crimping applications. It provides reliable crimping performance for electrical installation, wiring, and maintenance work.

Features

Indent Crimp Profile

Indent crimp profile – cross-section of a cable lug with an indent (point) crimp
Indent (point) crimp

This standard crimping tool uses an indent (point) crimp profile, pressing an indentation into the terminal barrel to hold the copper conductor securely. For a hexagonal crimp profile, see our hexagonal crimping tools (VTC-25H, VTC-50H, VTC-120H, VTC-150H).

Specifications

Model No.VTC-5.5
Terminal size – JIS1.25, 2, 3.5, 5.5 mm²
Terminal size – DIN1.5, 2.5, 4, 6 mm²
Terminal size – AWG16-12, 10
PackageBlister card
Quantity12 pcs / inner box, 48 pcs / carton
N.W. / G.W. (per carton)12 kg / 14 kg
Carton measurement1.25 cu ft
