VTC-120 Crimping Tool

For crimping terminals in JIS 8, 14, 22, 38, 60, 70, 80, 100 mm² / DIN 10, 16, 25, 35, 50, 70, 95, 120 mm² / AWG 8, 6, 4, 2, 1/0, 2/0, 3/0, 4/0.

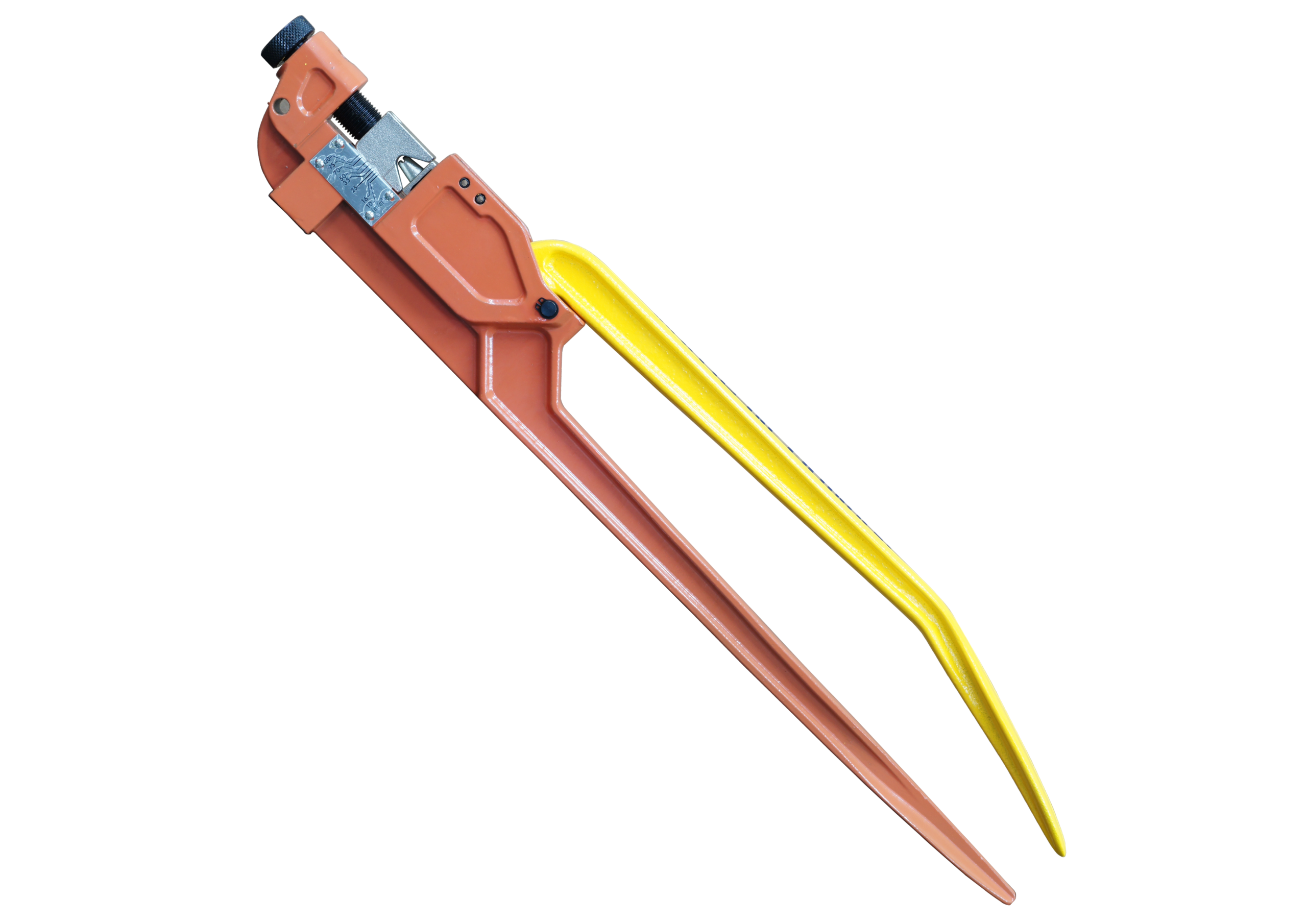

VTC-120 crimping tool for cable terminals up to 120 mm²
The VTC-120 Crimping Tool is designed for a wide range of terminal crimping applications. It supports multiple JIS, DIN, and AWG sizes for professional electrical installation and maintenance work.

Features

Indent Crimp Profile

Indent crimp profile – cross-section of a cable lug with an indent (point) crimp
Indent (point) crimp

This standard crimping tool uses an indent (point) crimp profile, pressing an indentation into the terminal barrel to hold the copper conductor securely. For a hexagonal crimp profile, see our hexagonal crimping tools (VTC-25H, VTC-50H, VTC-120H, VTC-150H).

Specifications

Model No.VTC-120
Terminal size – JIS8, 14, 22, 38, 60, 70, 80, 100 mm²
Terminal size – DIN10, 16, 25, 35, 50, 70, 95, 120 mm²
Terminal size – AWG8, 6, 4, 2, 1/0, 2/0, 3/0, 4/0
PackageCarton
Quantity5 pcs / carton
N.W. / G.W. (per carton)17 kg / 18 kg
Carton measurement0.6 cu ft

Typical Applications

With a range of JIS 8 to 100 mm² / DIN 10 to 120 mm², the VTC-120 is built for heavy power cables:

  • Power distribution – crimping cable lugs on main feeders and switchgear connections
  • Solar and battery systems – battery cables and inverter connections
  • Welding cables and grounding / earthing conductors
  • Industrial plant and building electrical installation

VTC-120 or VTC-120H — Which One Should You Choose?

Both models cover the same terminal sizes (JIS 8 – 100 mm² / DIN 10 – 120 mm² / AWG 8 – 4/0). The difference is the crimp profile:

VTC-120VTC-120H
Crimp profileIndent (point)Hexagonal
Terminal rangeJIS 8 – 100 mm² / DIN 10 – 120 mm²JIS 8 – 100 mm² / DIN 10 – 120 mm²
Best forStandard JIS-type copper lugs, general installation and maintenance workProjects that call for an even, six-sided crimp with a larger contact area
Package5 pcs / carton5 pcs / carton

Learn more in Hexagonal vs Indent Crimping.

Frequently Asked Questions

Which cable sizes can the VTC-120 crimp?

It crimps terminals for JIS 8, 14, 22, 38, 60, 70, 80 and 100 mm², DIN 10 to 120 mm², and AWG 8 to 4/0. See our Terminal Size Chart: JIS vs DIN vs AWG to convert between JIS, DIN and AWG.

Do I need to change dies for different terminal sizes?

No. The VTC-120 has multiple crimping cavities for different terminal sizes built into the jaw, so there are no dies to change or lose — just place the terminal in the matching cavity and crimp.

What is the minimum order quantity?

The VTC-120 is packed 5 pcs per carton. We welcome both trial orders and bulk export orders, as well as OEM / private label production. Contact us for a quotation.
